(Pack 5.2) Balboa GS523DZ with Deluxe VL802D. 3 pump with air.

(Pack 5.2) Balboa GS523DZ with Deluxe VL802D. 3 pump with air.

PK-52304

Aquarius Spa Parts

Price on application

Tax included.
Contact Us
Type of Product: Balboa electronic control pack with paired topside control. (CABLES NOT INCLUDED)
Manufacturer: Balboa
Power: Volts: 230vac Hz: 50 Amps: 16A or 32A
Specifications: Pump 1: Single or dual speed pump + circulation pump if required. Pump 2: Single speed Pump 3: Single speed Air Blower: x 1 (optional) Heater: x 1 (3KW) Ozone: x 1 Light: x1 12 volt Radio TV/AV: Point available
Compatible With: Any retrofit system suitable for upgrades
Connections: 2-inch socket heater union sleeves. Amp cables plug into the PCB to operate the components.
Dimensions: Length: 500 mm (inc heater) 320 mm (box only) Width: 120 mm Height: 270 mm Topside: 265 mm x 117 mm
Topside Buttons: TIME MODE WARM COOL BLOWER LIGHT JETS 1 and JETS 2 (Jets 2 button operates pump 2 and pump 3 individually keep pressing the button to cycle through).

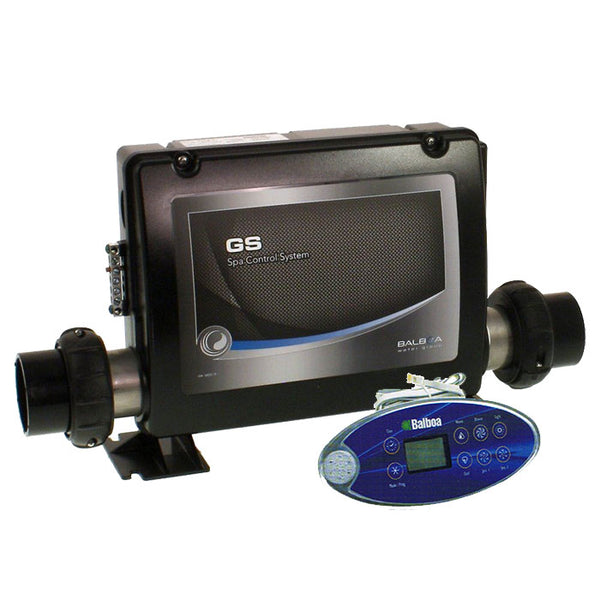

Items Included: Balboa GS523DZ control box and Balboa VL802D topside control
Additional Notes:

* Cables not Included *

The M7 technology means you do not need to have sensors and flow switches going back into the tub as everything is done inside the control box by 2 sensors.

This deluxe Touch Pad or Topside control allows you to set your preferred filter times by a built-in clock. Its large screen also gives you detailed information about the operation of the Hot Tub and symbols display when the individual components are running. This system also displays when it is in a filter cycle and you can read the time from it also.

*SPECIAL NOTE* J17 IS A PORT THAT ALLOWS YOU TO RUN EITHER AN AIR BLOWER OR ANOTHER SINGLE SPEED PUMP. THE PORT IS PROTECTED BY A 10 AMP QUICK BLOW FUSE.

    • Useful notes: Most Spa Serve / Trade Price Group Spa's have 3 main pumps 1 x Circ pump for heating 1 x Small pump for Water Fountain and 1 x Air Blower. To combat the problem of 2 circ pumps we recommend one of the following 3 options...
    • 1) Remove fountain pump and link the plumbing.
    • 2) Power both Circ Pumps on the same relay.
    • 3) Add an additional pneumatic button to operate fountain (this must be activated at least once a week to avoid stagnant water)
    • *the above useful notes are designed to be understood by a qualified Spa Technician or a competent individual. We won't explain these points further as they could be misinterpreted to someone who does not have the necessary skills and therefore would not be safe for us to advise*

    SOMETIMES YOU MADE NEED LONGER CABLES TO CONNECT THE TOUCH PAD AND PUMPS THESE CAN BE FOUND IN THE RELATED ITEMS BELOW THE PART NUMBERS ARE:-

    CA-AM301 AND TS-EXS25
